Assembly of TD75 General Belt Conveyor
Time:2016-04-19 Form:
Jiangsu Wuyun
Hit:3376

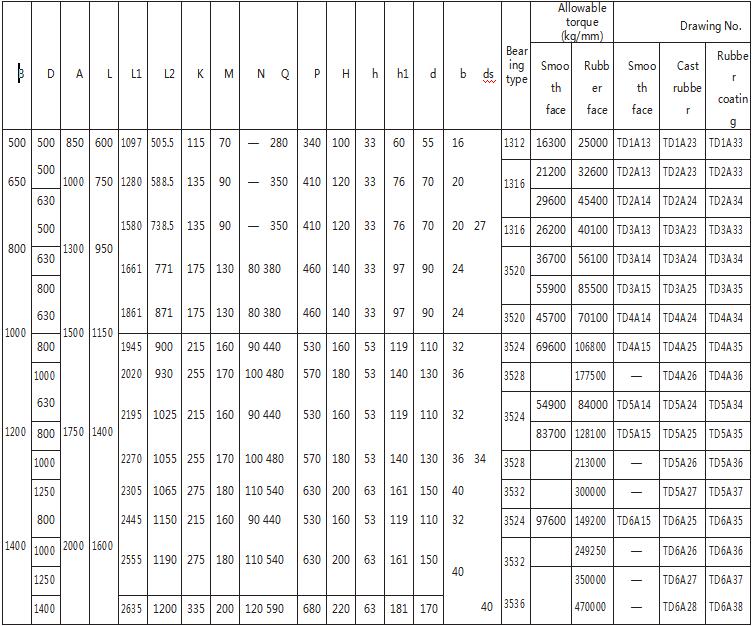

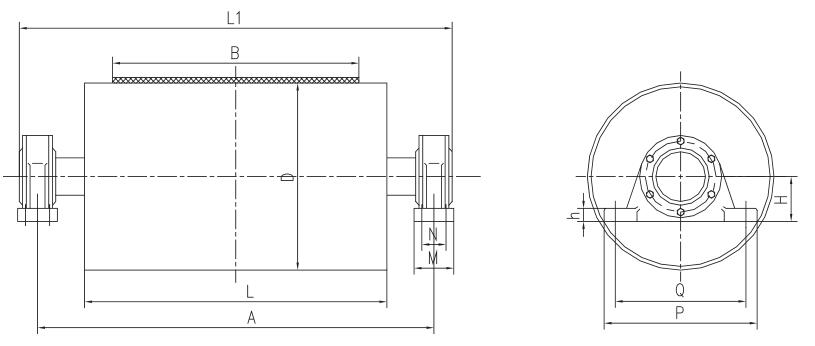

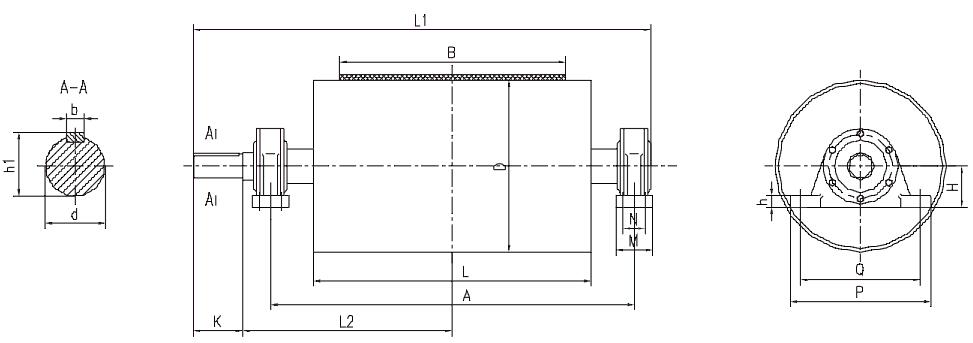

I. Driving drum

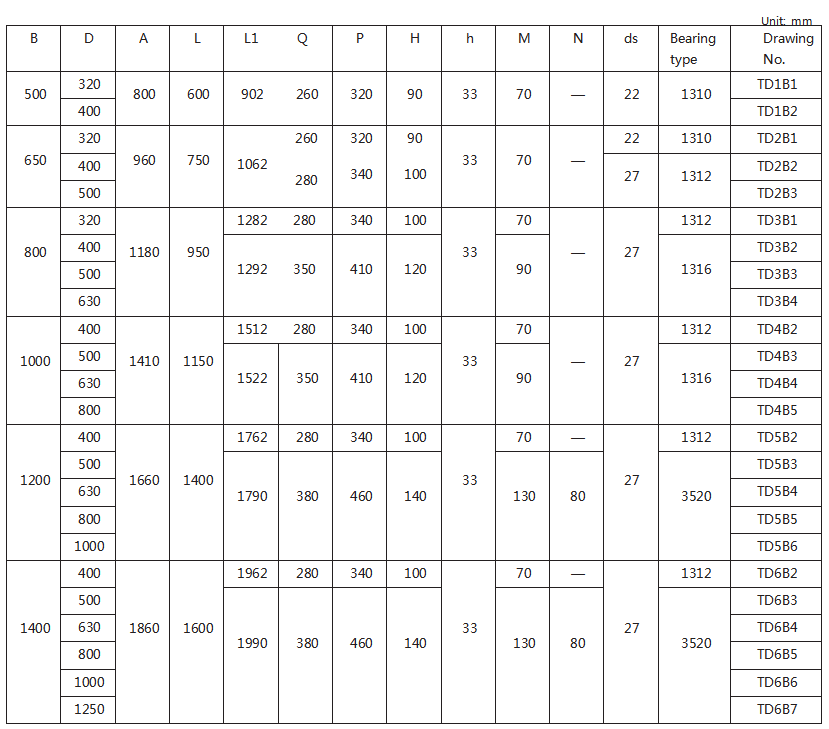

II. Bend drum
III. Idler

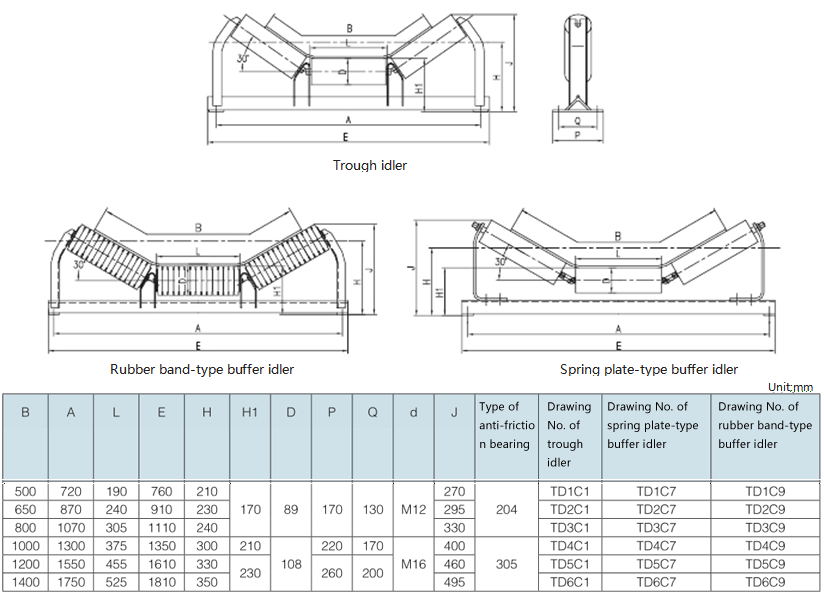

1. Trough idler and buffer idler

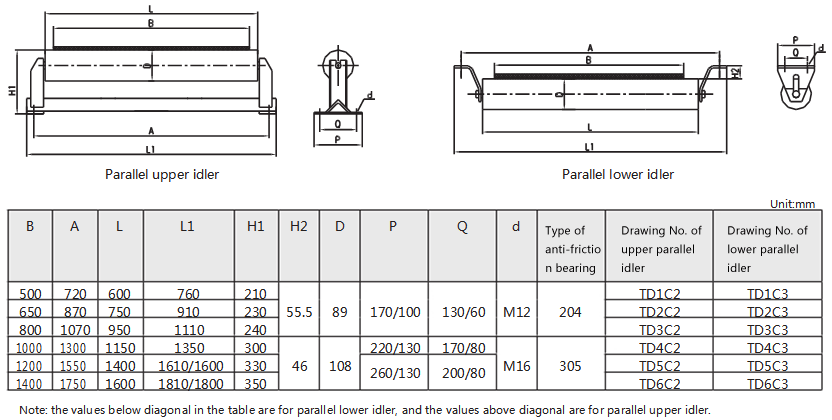

2. Parallel idler

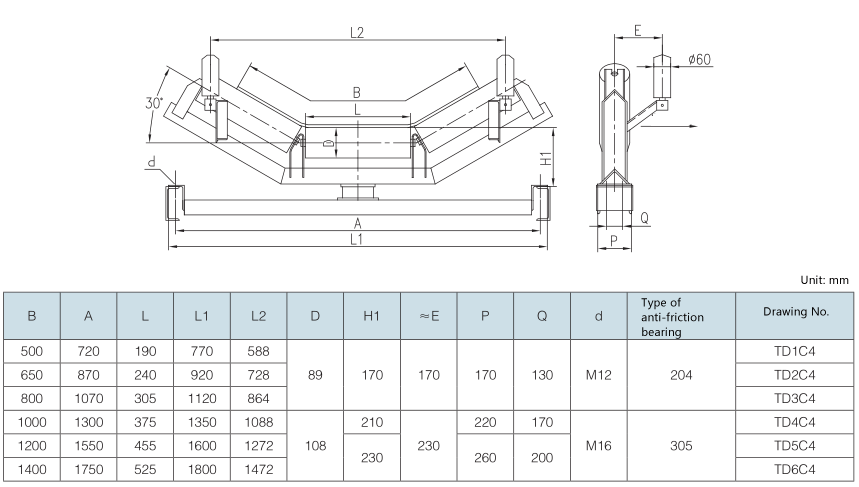

3. Trough self-aligning idler

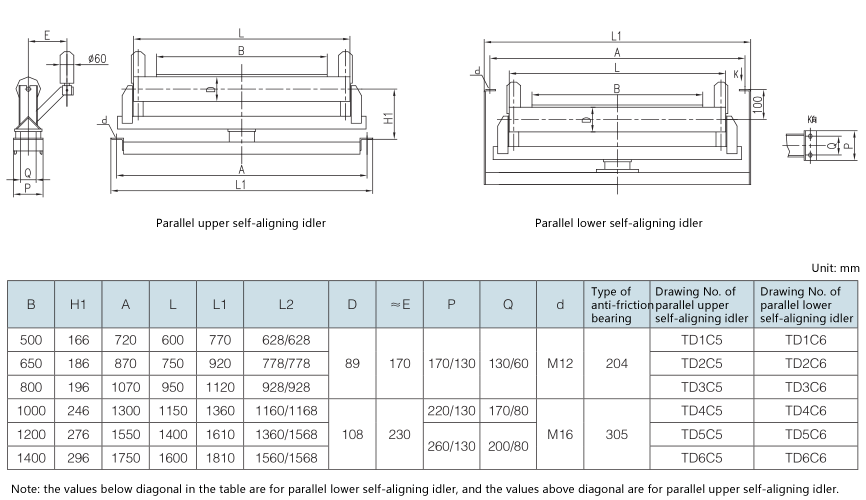

4. Parallel self-aligning idler
IV. Roller of idler

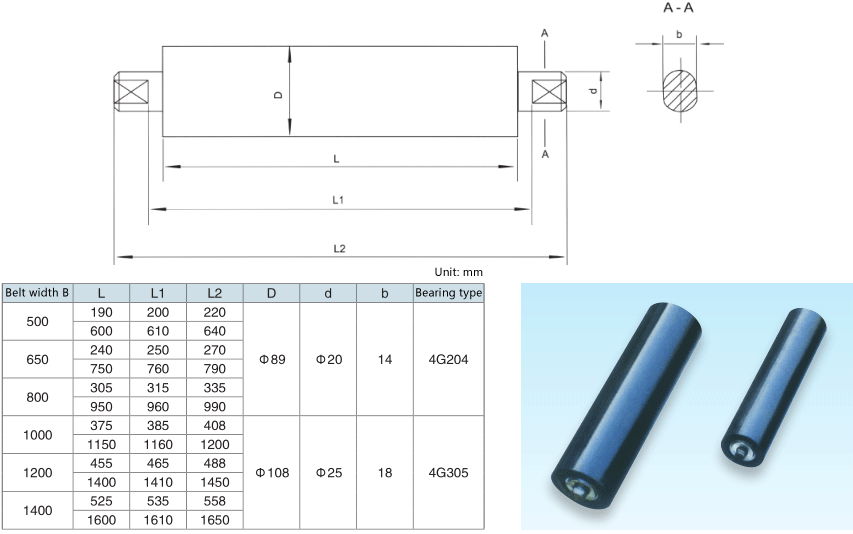

1. TD75 general type roller

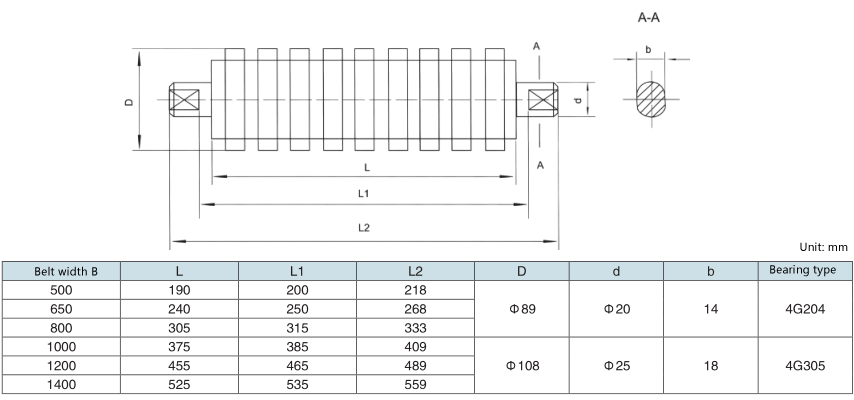

2. TD75 buffer idler
